Endless loop felt conveyor belts with an embedded anti-counterfeit identity inside each belt. Rated from 180°C to 600°C, covering every temperature zone from press exit to finished product storage.
Up to 600°C

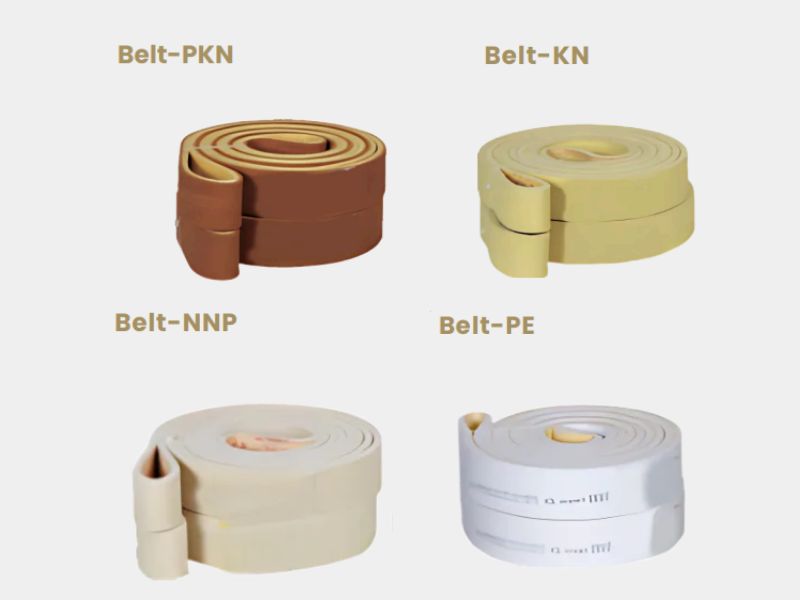

| Type | Color | Temperature | Composition | Application Zone |
|---|---|---|---|---|
| Belt-PKN | Brown + Yellow | 600°C | PBO+Kevlar+Nomex Tension Member | Run-out / Cooling table (High Temp) |
| Belt-KN | Yellow | 500°C | Kevlar+Nomex Tension Member | Run-out / Cooling table (High Temp) |
| Belt-NNP | Off White | 280°C | 100% Nomex+Nomex Tension Member | After stretching conveyor (Middle Temp) |
| Belt-PE | White | 180°C | 100% Polyester+Nomex Tension Member | Storage / Saw table / Anodizing line |
Belt-PKN and Belt-KN handle the hottest zone immediately after the press for smooth, scratch-free profile transport.
Seamless loop design ensures no joint marks on aluminium profiles during the cooling phase.
Belt-NNP provides reliable middle-temperature conveying after the stretching process.
Belt-PE is ideal for loading/unloading lines in anodizing and powder coating facilities.
Every belt carries a unique embedded identity inside the belt, protecting you from counterfeit products.
No joints or splices means no impression marks on your aluminium profiles and consistent transport speed.
Widest seamless belts available to fit large-format extrusion lines and wide-profile conveyors.

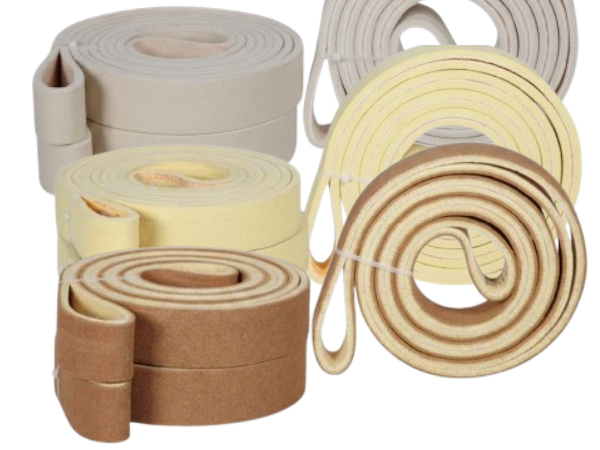

Internal Nomex tension layer provides dimensional stability and prevents belt stretch under load.
