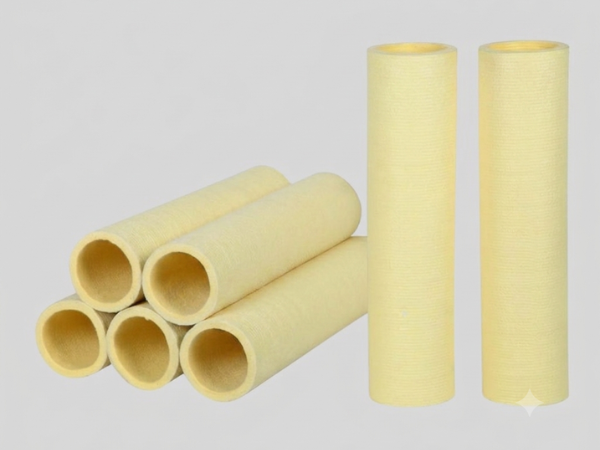

From super high-temperature PBO+Kevlar to room-temperature Polyester — Alumax rollers protect aluminium profiles at every stage of the extrusion run-out table. Each bore carries an independent anti-counterfeit logo to guarantee authenticity.
Up to 600°C

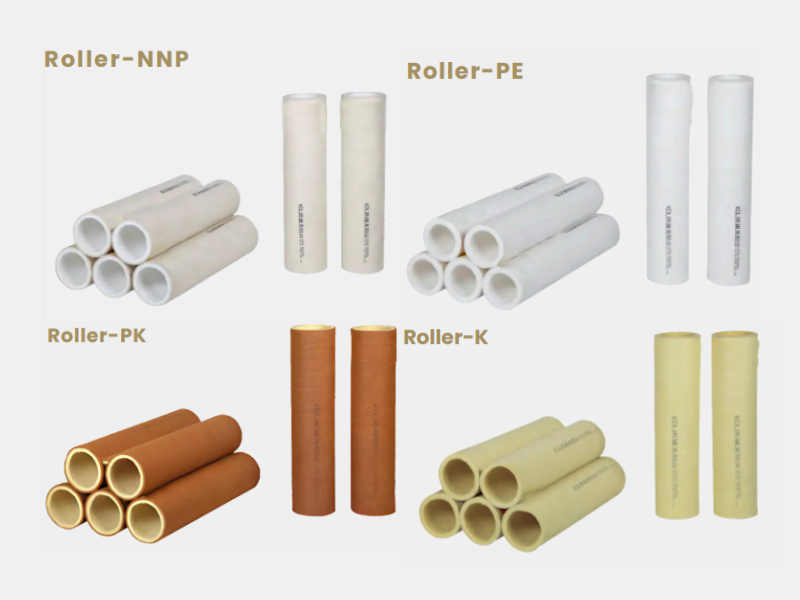

| Type | Color | Temperature | Composition | Application Zone |
|---|---|---|---|---|
| Roller-PK | Brown | 600°C | PBO Outside + Kevlar | Before fly cut (High Temp Zone) |
| Roller-K | Yellow | 500°C | 100% Kevlar | After fly cut / Run-out table |
| Roller-NNP | Off White | 280°C | Nomex + Polyester | Finished saw table / Moderate zone |
| Roller-PE | White | 180°C | 100% Polyester | Finished saw table / Room temp |
Hard type treated with resin. Custom sizes available on request.
Roller-PK handles extreme temperatures immediately after the press exit, protecting profiles from graphite scratch marks.
Roller-K's 100% Kevlar construction provides reliable support through the cooling run-out table stage.
Roller-NNP and Roller-PE are ideal for the saw table and moderate/room-temperature conveyor zones.
Compatible with all standard extrusion press configurations. Available in 20+ bore sizes to fit any machine.
Every roller bore carries an independent anti-counterfeit logo, guaranteeing you receive original Alumax products.
Four variants covering 180°C to 600°C — one supplier for your entire extrusion line, from billet furnace to storage.
Available in φ41 to φ127 to fit any standard or custom extrusion line roller shaft.
Hard type treated with resin for enhanced rigidity and longer service life on demanding conveyor systems.
