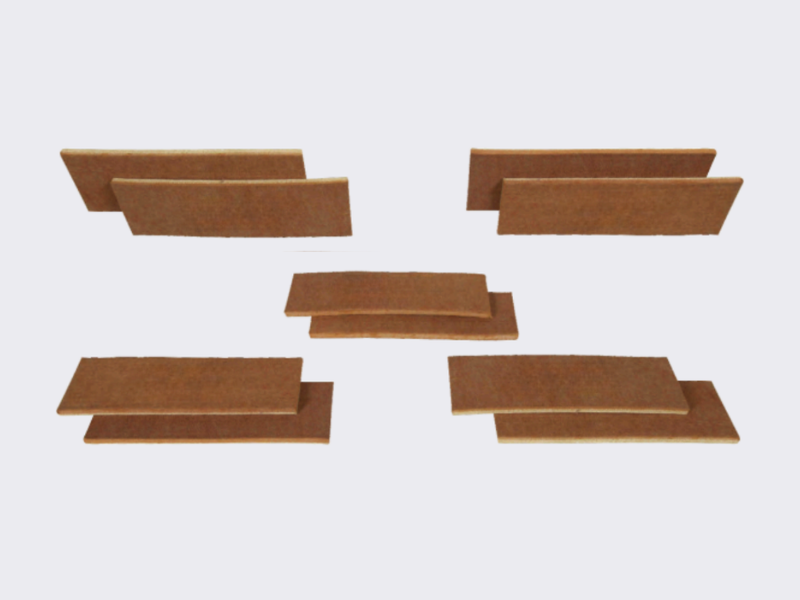

Heavy-duty PBO-based composite felt pads engineered specifically for the press mouth zone. Composite thickness options allow fine-tuning of compression and protection at the hottest point of the extrusion line. Lengths up to 20,000mm.
600°C All Types
| Type | Color | Temperature | Composition |
|---|---|---|---|
| PBO-100% | Brown (Brown+Brown) | 600°C | PBO + PBO |
| Pad-PKK | Brown + Yellow | 600°C | PBO + Kevlar |
| Pad-PK | Brown + Yellow | 600°C | PBO + Kevlar (PBO outer) |
Directly at the press exit — the hottest and most demanding point on the extrusion line where profiles first emerge.
Prevents die lines, graphite marks and surface damage on aluminium profiles as they exit the press at extreme temperatures.
Composite thickness options allow precise fit for different press configurations from small to large-tonnage machines.
Suitable for all sizes of aluminium extrusion presses. Custom widths and lengths available to order.
Every press mouth pad type is rated for 600°C — no compromise at the hottest zone of your line.
Choose from 10mm single or 7+3, 6+4, 5+5, 4+6, 3+7 composite builds for precise press mouth clearance.
Continuous length production minimises joins and ensures consistent protection across the full press mouth width.
Hard type treated with resin for presses requiring a stiffer pad that maintains its shape under compression.
