All Products Extrusion Line Press Consumables Furnace Consumables

RUN-OUT TABLE & CONVEYOR

Aluminium Extrusion Line Products

Precision-engineered high-temperature felt rollers, conveyor belts and pads that protect profile surface quality from the press mouth to finished-product storage.

High temperature PBO Kevlar felt rollers for aluminium extrusion

High Temperature Felt Rollers

PBO, Kevlar, Nomex & Polyester rollers for every temperature zone of the extrusion run-out table. Available in 20+ bore diameters.

Roller-PK PBO+Kevlar · 600°C
Roller-K 100% Kevlar · 500°C
Roller-NNP Nomex · 280°C
Roller-PE Polyester · 180°C

VIEW DETAILS →

Seamless Kevlar PBO conveyor belt for aluminium extrusion cooling table

Seamless Conveyor Belt Series

Endless loop seamless felt belts for run-out, cooling, stretching and storage tables. Width 20–1500mm, Length up to 11000mm.

Belt-PKN PBO+Kevlar+Nomex · 600°C
Belt-KN Kevlar+Nomex · 500°C
Belt-NNP 100% Nomex · 280°C
Belt-PE Polyester · 180°C

VIEW DETAILS →

Felt Pad Series

High-temperature felt pads to protect aluminium profiles during transport and handling. Width 30–1500mm, treated with resin for hardness.

Pad-PK PBO+Kevlar · 600°C
Pad-KK 100% Kevlar · 500°C
Pad-NP Nomex+Kevlar · 280°C
Pad-PE Polyester · 180°C

VIEW DETAILS →

PBO press mouth felt pad 600°C aluminium extrusion

PRESS MOUTH PAD

Press Mouth Felt Pad Series

Heavy-duty felt pads designed for the press mouth zone. Composite thickness options 10mm, 7+3, 6+4, 5+5 and more. Length up to 20000mm.

PBO-100% PBO+PBO · 600°C
Pad-PKK PBO+Kevlar · 600°C
Pad-PK PBO+Kevlar(PBO) · 600°C

VIEW DETAILS →

Nomex felt strip for iron rack protection 280°C aluminium extrusion

NOMEX FELT STRIP

Nomex Felt Strip for Iron Rack

Two-side protection Nomex felt strips for wrapping iron racks. Prevents scratches on aluminium profiles during transfer and aging. 20m per roll.

Width 30–50mm · Length 20000mm
Thickness 6mm, 8mm, 10mm
Temp 280°C working temperature

VIEW DETAILS →

Nomex polyester spacer sleeve for aluminium aging furnace

Nomex & Polyester Spacer Sleeve

Custom-made spacer sleeves for aluminium aging furnaces. Nomex (220–280°C) and Polyester (150–180°C) types. Custom sizes available on request.

N-S Type 100% Nomex · 220–280°C
PE-S Type 100% Polyester · 150–180°C
Thickness 1.3 – 3.0mm

VIEW DETAILS →

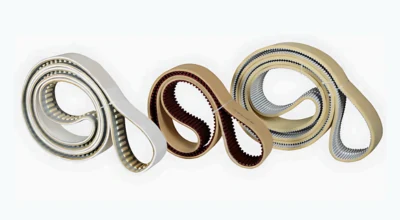

PVC PE seamless timing belt for aluminium extrusion conveyor room temperature

Timing Belt Series

PVC and PE seamless steel-structure timing belts for room-temperature conveyor applications. Types: T20, AT, K10, HTD 14M. Felt-bonded options available.

PVC Belt Seamless steel structure · felt bonded
PE Belt Seamless steel structure · PE+PE
Types T20 · AT · K10 · HTD 14M

VIEW DETAILS →

Galvanized steel roller for aluminium extrusion run-out table

Galvanized Steel Roller

Precision galvanized steel rollers for initial table (high temp) and finished product conveyor. Multiple standard specs with Mitrix supports for mounting.

Side Roller φ15 × φ50 × 100 × 180
Conveyor Roller φ15 × φ50/φ60 × 450 × 480
High Temp φ15 × φ60/φ76 × 400 × 430

VIEW DETAILS →

State patented Chain Text Conveyor Belt

480°C–280°C

CHAIN BELT · PATENT

Chain Text Conveyor Belt (Heavy Duty)

State patent heavy-duty chain conveyor belt for 2500T–10000T presses. Strong pull eliminates conventional slipping. Felt surface effective range 5mm.

Teeth 12.7mm / 15.87mm pitch
Length Up to 11000mm
Width 80–130mm · Temp 480°C–280°C

VIEW DETAILS →

HYDRAULICS · LUBRICATION · PPE · INSTRUMENTATION

Consumable Products for Extrusion Press

Everything that keeps the press itself running — hydraulic power, container heating, die lubrication, temperature monitoring and operator safety gear.

Hydraulic Pumps – Alumax International

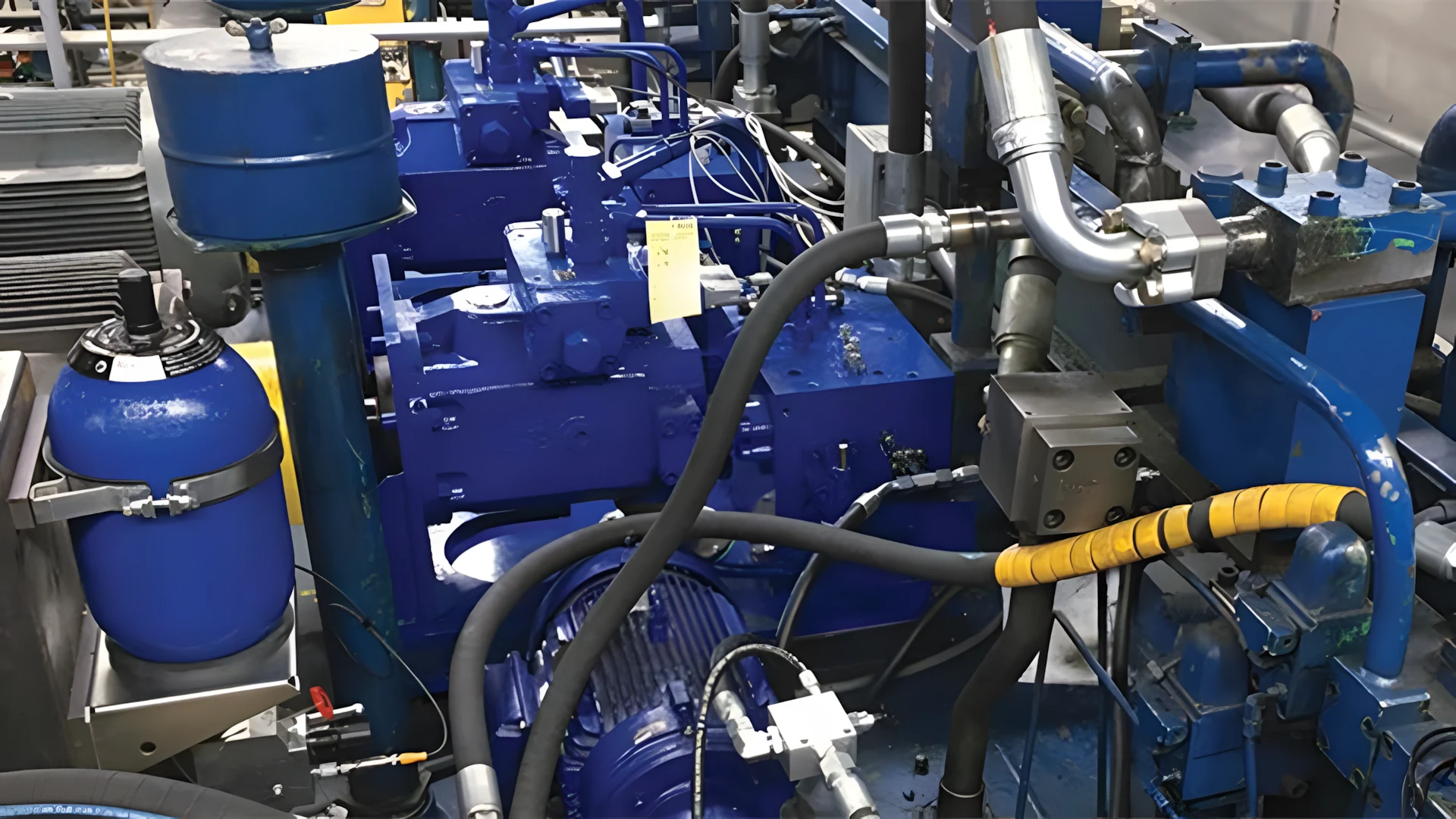

Hydraulic Pumps

Heavy-duty hydraulic pumps for the main cylinder, container and stem circuits, delivering the consistent flow and pressure needed for smooth billet upset and extrusion strokes.

Duty Main ram, container & stem circuits
Types Vane, gear & piston pumps
Fit OEM & retrofit press models

VIEW DETAILS →

Hydraulic Valves – Alumax International

HYDRAULIC VALVE

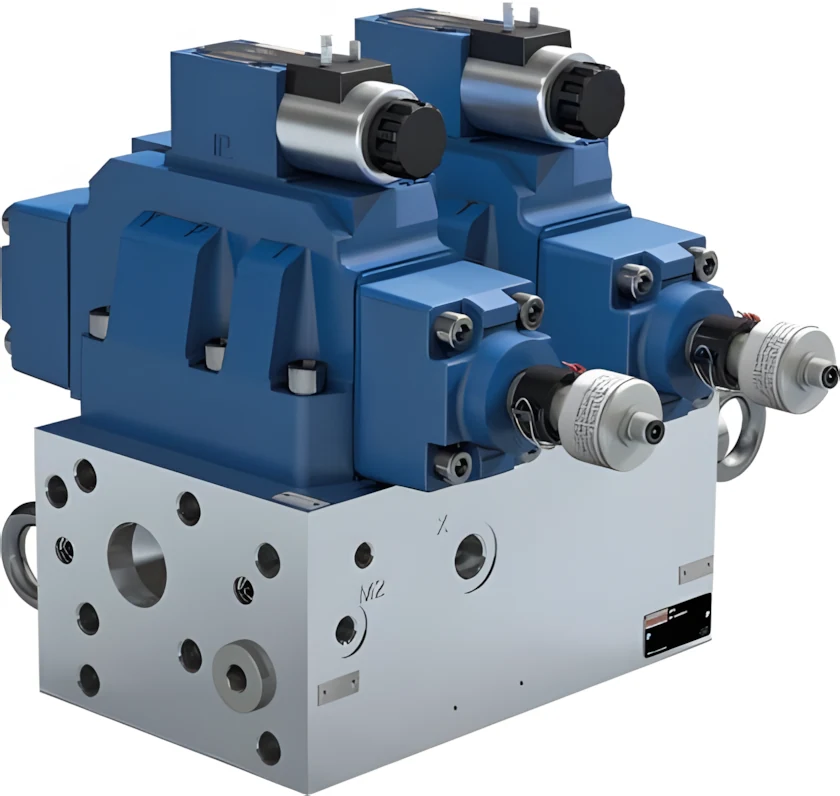

Hydraulic Valves

Directional control, pressure relief and proportional valves built for the demanding duty cycles of extrusion press hydraulics, for precise ram speed and sequencing control.

Types Directional, relief & proportional
Duty Continuous heavy-cycle operation
Fit Standard & custom manifold blocks

VIEW DETAILS →

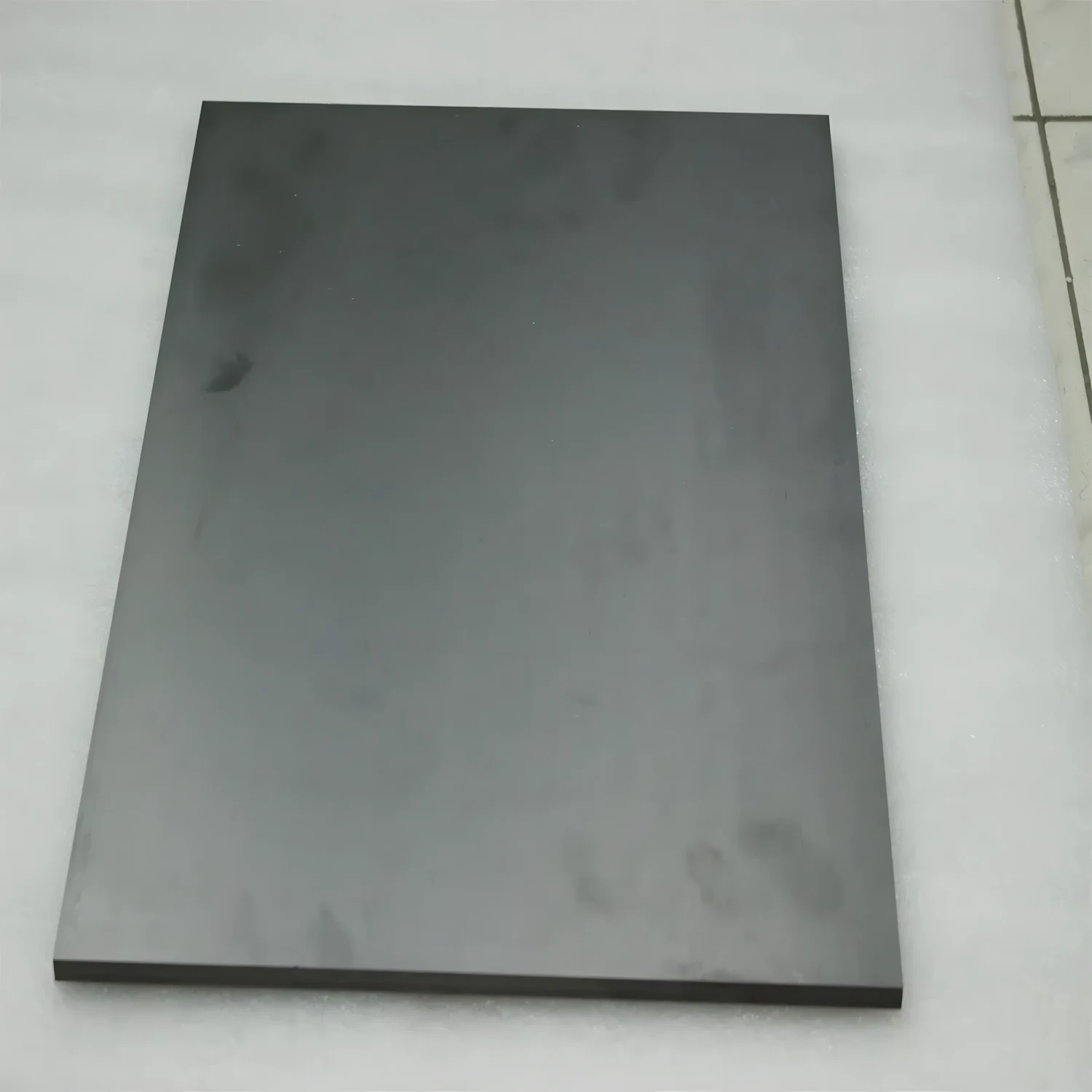

Graphite Plates & Bars – Alumax International

Graphite Plates & Bars

High-purity graphite plates and bars used as die-face, container-liner and tooling lubricant material, offering low friction and stable performance under repeated thermal cycling.

Grade High-purity, low-ash graphite
Forms Plates & bars, cut to size
Use Die face, container liner, tooling

VIEW DETAILS →

High Temperature Hand Gloves & Sleeves – Alumax International

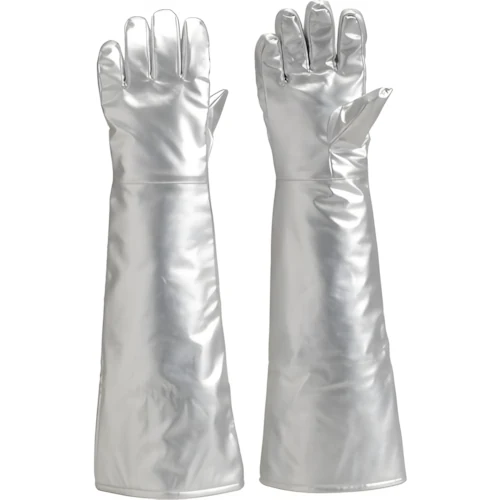

High Temperature Hand Gloves & Sleeves

Heat-resistant gloves and arm sleeves for operators working near hot billets, dies and the furnace mouth, giving reliable protection against radiant and contact heat.

Protection Radiant & contact heat
Forms Gloves & full arm sleeves
Use Billet, die & container handling

VIEW DETAILS →

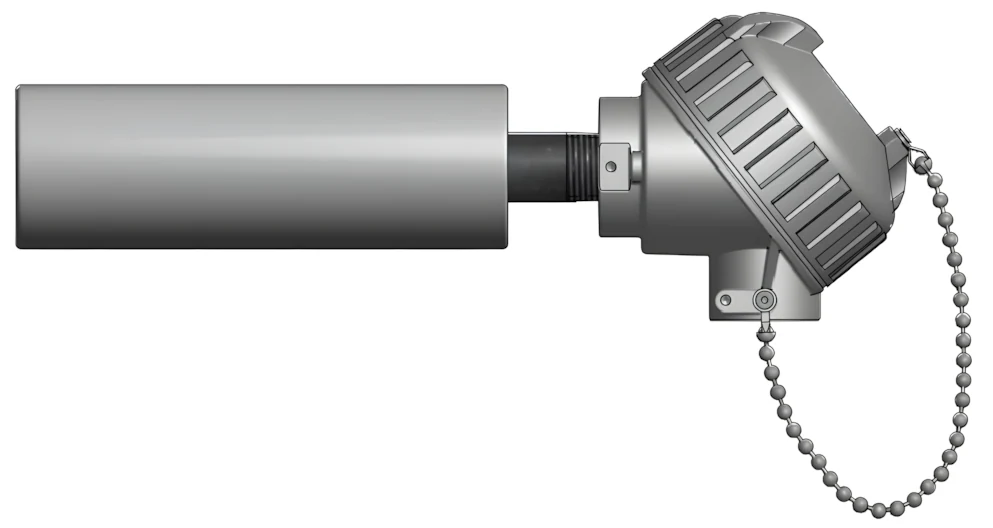

Thermocouple – Alumax International

INSTRUMENTATION

Thermocouple

Type K and Type J thermocouples for monitoring billet, container, die and platen temperature through the extrusion cycle — supporting the thermal control that consistent surface finish depends on.

Types Type K & Type J
Monitors Billet, container, die, platen
Use Process temperature control

VIEW DETAILS →

Container Heater — Round & Rod Type – Alumax International

CONTAINER HEATER

Container Heater — Round & Rod Type

Electric resistance heaters that bring the press container up to operating temperature before production, available in round (band/ring) and rod (cartridge) configurations.

Types a) Round (band) b) Rod (cartridge)
Use Container pre-heating
Fit Standard & custom container sizes

VIEW DETAILS →

Grapholite Oil & Paste – Alumax International

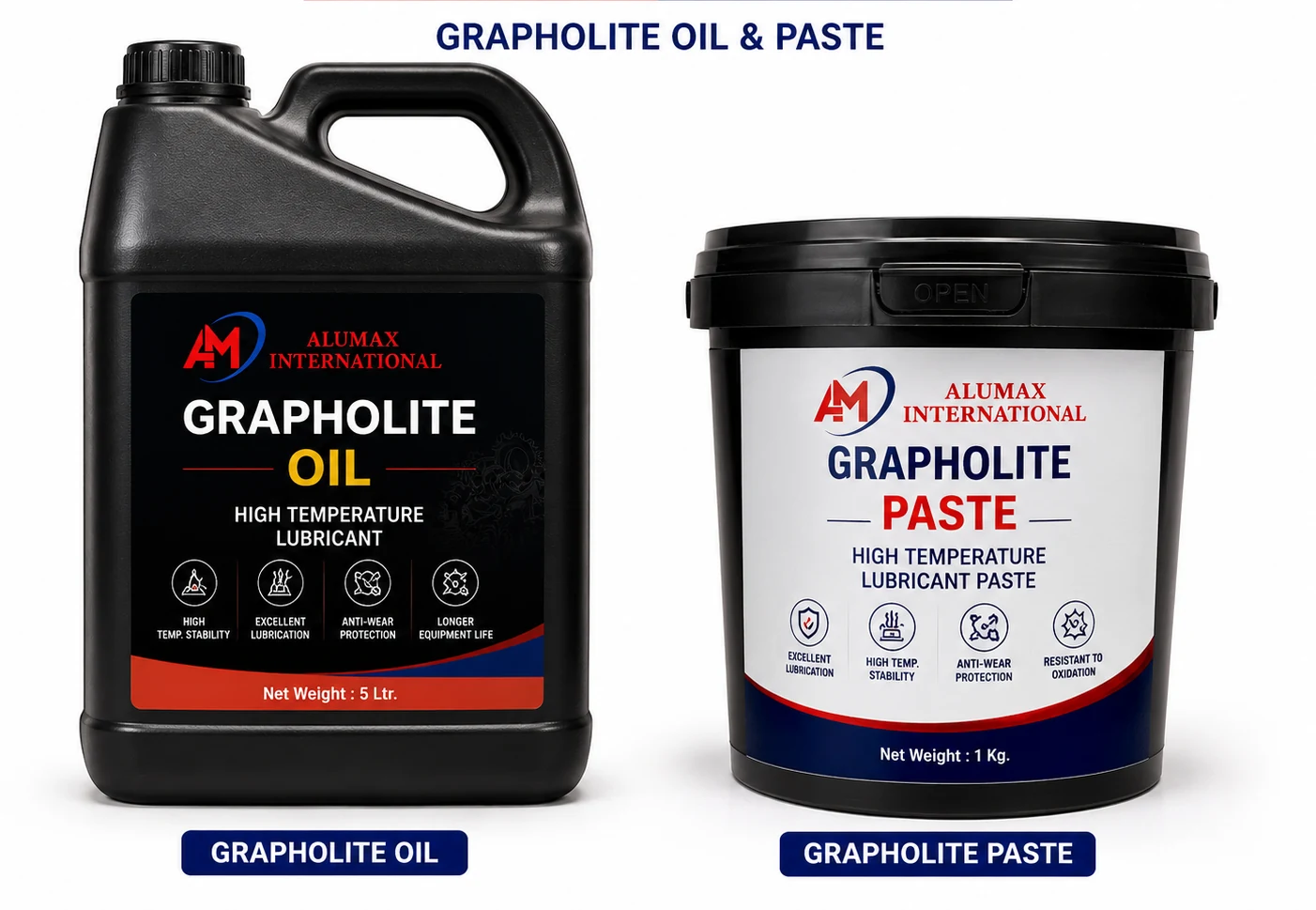

Grapholite Oil & Paste

Graphite-based lubricant oil and paste applied to dummy blocks, stems, dies and the container bore to reduce friction, prevent metal pick-up and extend tooling life.

Forms Oil & paste
Use Dummy block, stem, die, container bore
Benefit Lower friction, longer tooling life

VIEW DETAILS →

Need press-side consumables matched to your exact press tonnage and container size?

TALK TO OUR TEAM →

FLUX · DEGASSING · FILTRATION · REFRACTORY

Consumable Products for Aluminium Melting Furnace

Melt-treatment chemicals, filtration media, master alloys and refractory insulation for cleaner metal, lower melt loss and longer furnace campaigns.

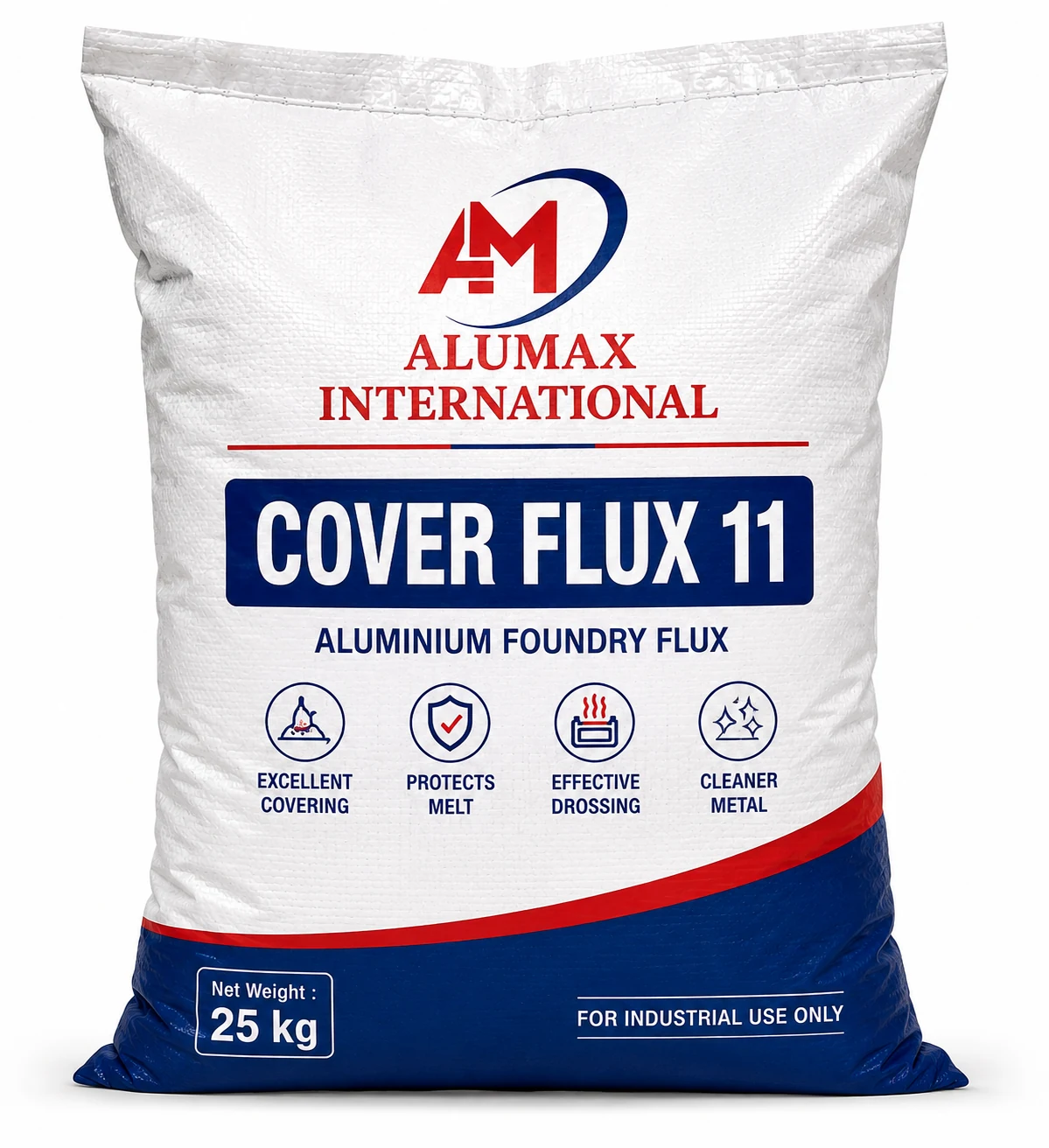

Coverall / Flux 11 – Alumax International

Coverall / Flux 11

A chloride-fluoride based drossing flux that forms a protective cover over molten aluminium, agglomerating oxides and non-metallic inclusions so they lift cleanly into the dross.

Type Drossing & cleansing flux
Form Fine powder (chloride/fluoride salts)
Use Melting & holding furnaces

VIEW DETAILS →

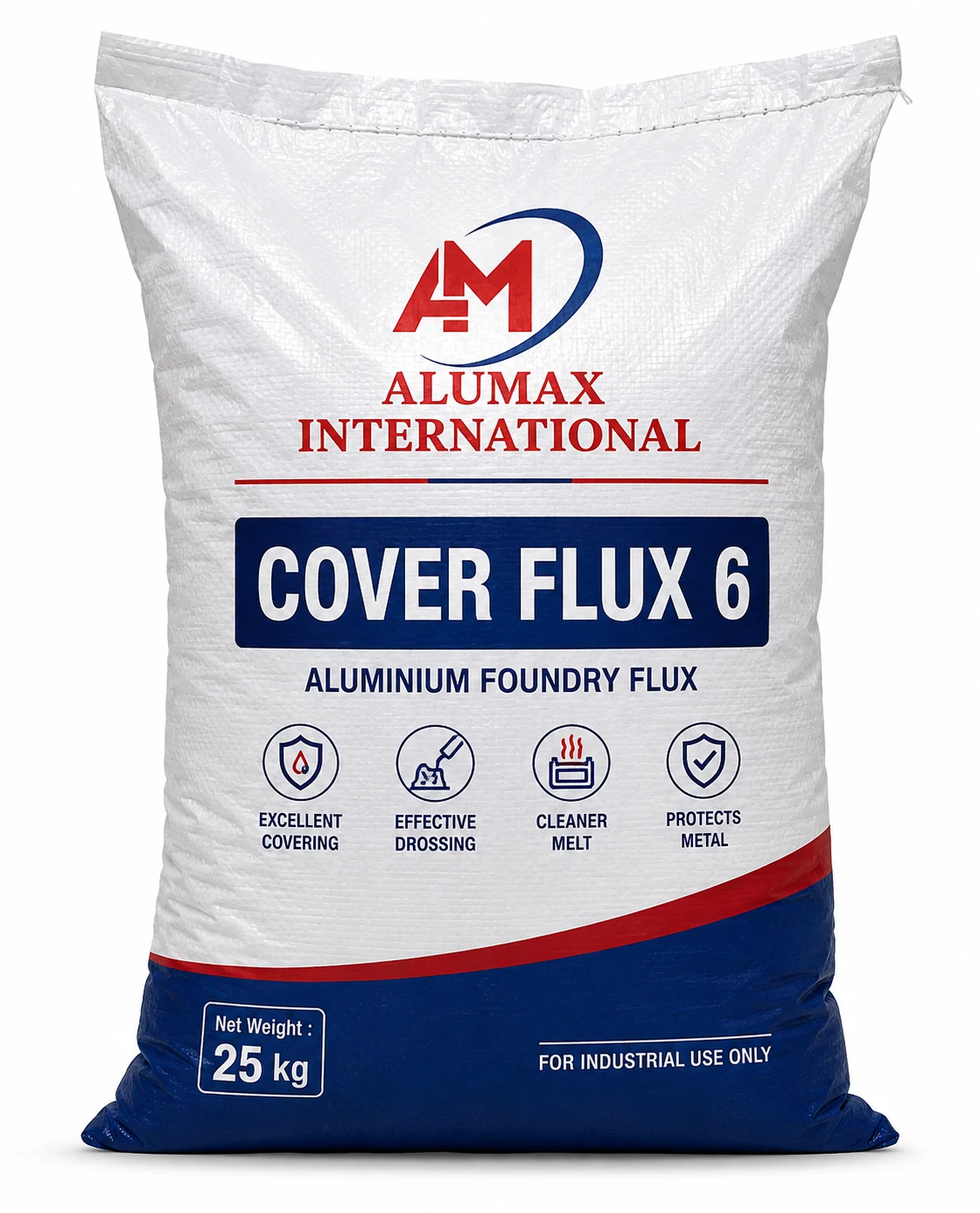

Cover Flux 6 – Alumax International

Cover Flux 6

A general-purpose covering flux that forms a low-viscosity protective layer on the melt surface, cutting oxidation losses and hydrogen pick-up during holding and transfer.

Type Covering flux
Use Melting & holding furnaces
Benefit Lower oxidation & hydrogen pick-up

VIEW DETAILS →

Degasser SPL – Alumax International

DEGASSING TABLET

Degasser SPL

A compact degassing tablet plunged into the molten bath to release fine, evenly dispersed bubbles that strip dissolved hydrogen and float out non-metallic inclusions.

Form Compressed tablet
Removes Dissolved hydrogen & inclusions
Use Pre-cast melt treatment

VIEW DETAILS →

Filter Cloth – Alumax International

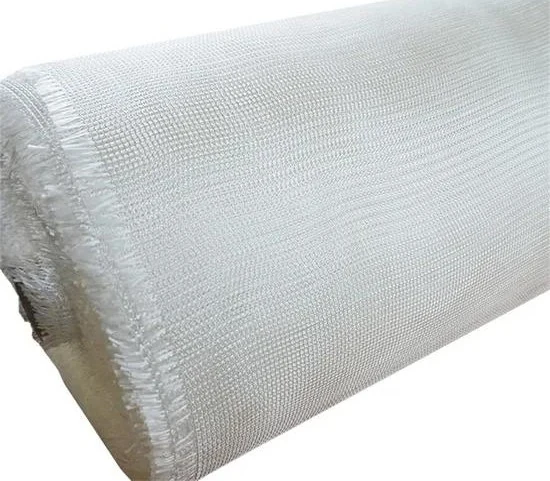

Filter Cloth

High-temperature filter cloth used in launders and filter boxes to strain molten aluminium of oxide films and non-metallic inclusions ahead of casting.

Use Launder & filter-box straining
Removes Oxide films & inclusions
Pairs with Ceramic foam filters

VIEW DETAILS →

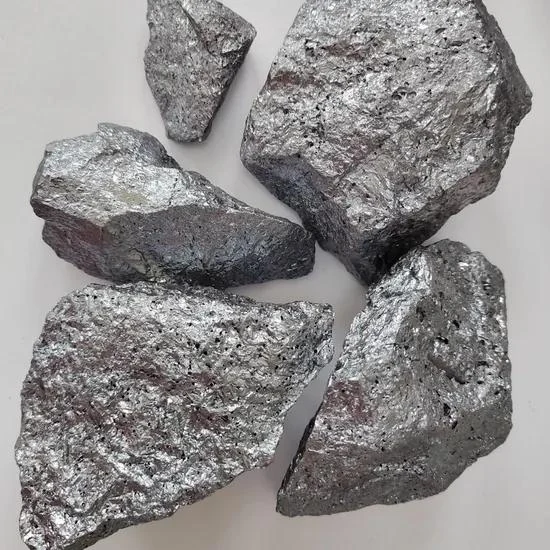

Master Alloys – Alumax International

Master Alloys

A range of master alloys for precise melt chemistry: magnesium ingots for Al-Mg additions, LM6-grade silicon for Al-Si melt adjustment, and 6.5mm Al-Ti grain-refiner rod for a fine, equiaxed grain structure.

a) Mg Ingots Magnesium content adjustment
b) LM6 Silicon Al-Si melt chemistry
c) Al-Ti Rod 6.5mm grain-refiner rod

VIEW DETAILS →

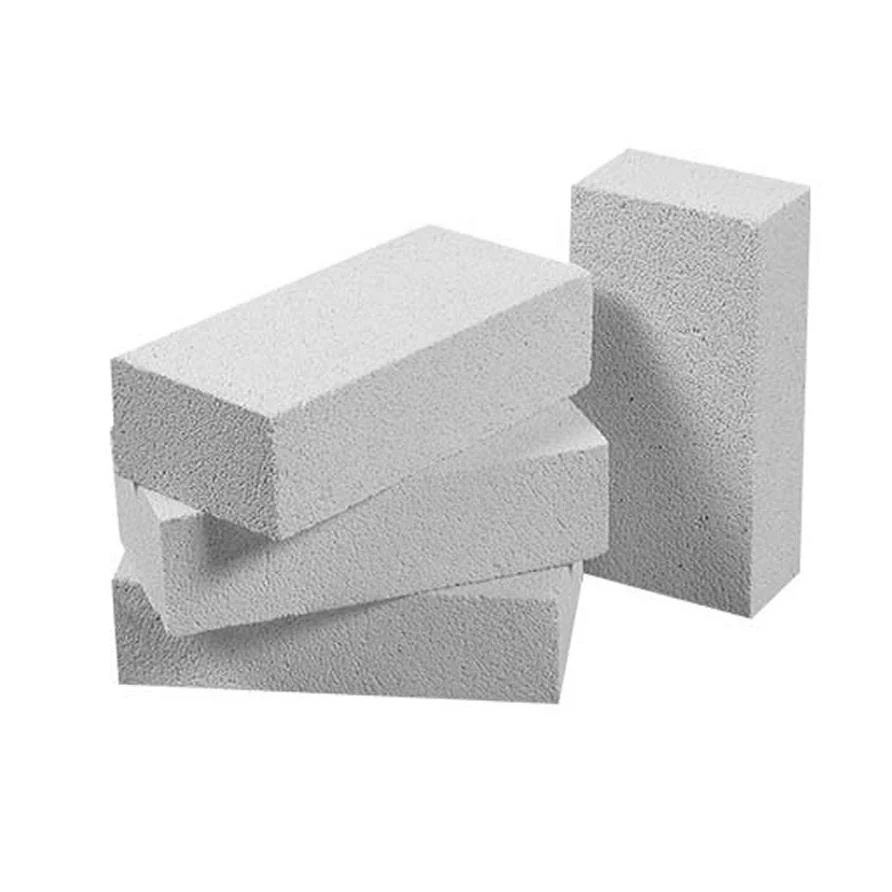

Insulation Bricks – Alumax International

Insulation Bricks

Refractory insulating bricks for furnace wall and roof lining that cut heat loss and stabilise furnace temperature over long melting campaigns.

Use Furnace wall & roof lining
Benefit Lower heat loss
Fit Standard furnace refractory sizes

VIEW DETAILS →

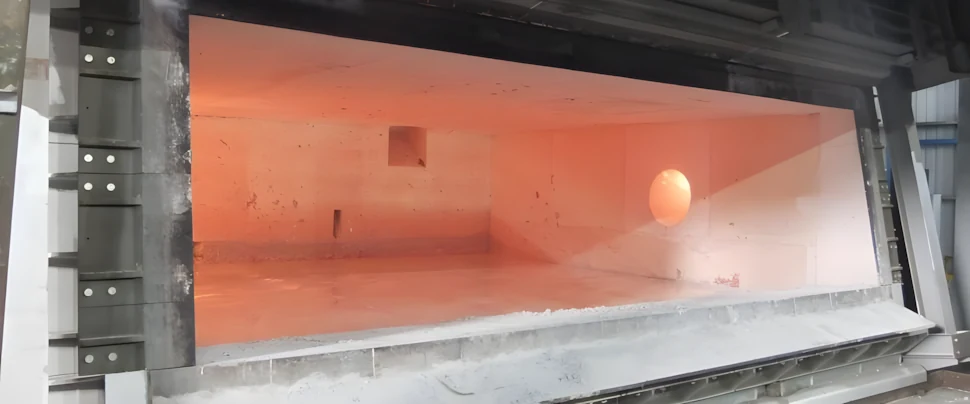

Insulation Clays – Alumax International

Insulation Clays

Refractory insulating clay for patching, sealing and lining furnace joints, launders and burner blocks — keeping the hot face intact between relines.

Use Joints, launders & burner blocks
Form Trowel / castable clay
Benefit Extends refractory service life

VIEW DETAILS →

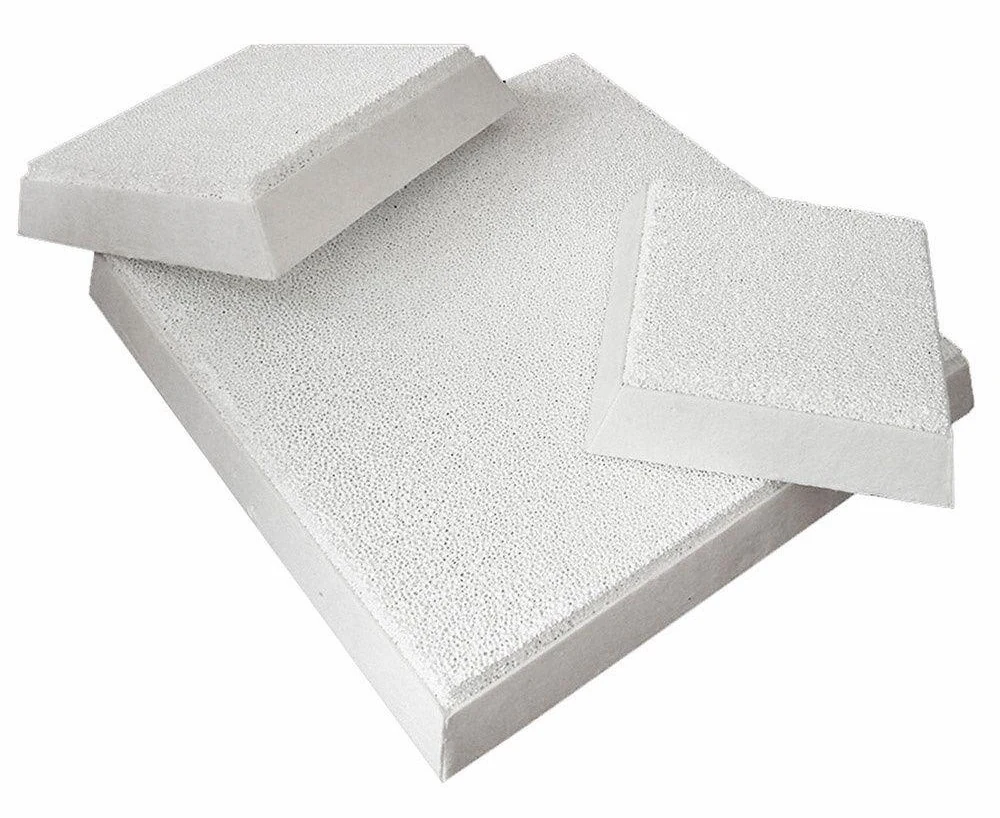

Ceramic Foam Filter – Alumax International

Ceramic Foam Filter

Alumina ceramic foam filters installed in the filter box or launder to trap oxide films and non-metallic inclusions from the melt stream, improving casting cleanliness.

PPI Range 10–30 pores per inch
Material Alumina ceramic foam
Use Launder / filter-box filtration

VIEW DETAILS →

Ceramic Cone – Alumax International

Ceramic Cone

Refractory pouring cones and nozzles that guide molten metal from the furnace or ladle into the launder or mould with minimum turbulence and re-oxidation.

Use Furnace / ladle pouring control
Benefit Reduced turbulence & re-oxidation
Fit Standard & custom bore sizes

VIEW DETAILS →

Ceramic Blanket – Alumax International

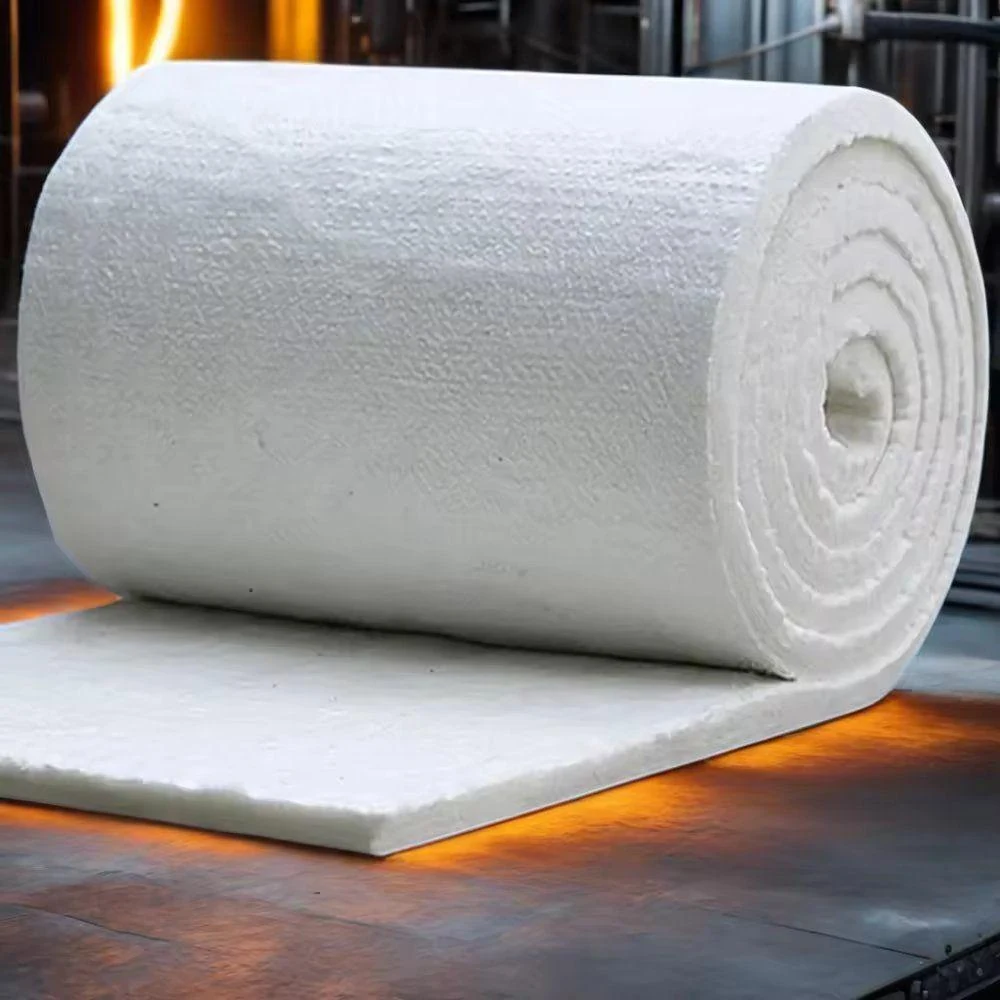

Ceramic Blanket

Flexible ceramic-fibre insulation blanket used to line furnace doors, hot-face refractory and duct work, cutting radiant heat loss and improving energy efficiency.

Use Door seals & hot-face lining
Form Flexible ceramic-fibre blanket
Benefit Reduced radiant heat loss

VIEW DETAILS →

Dummy Head (All Sizes) – Alumax International

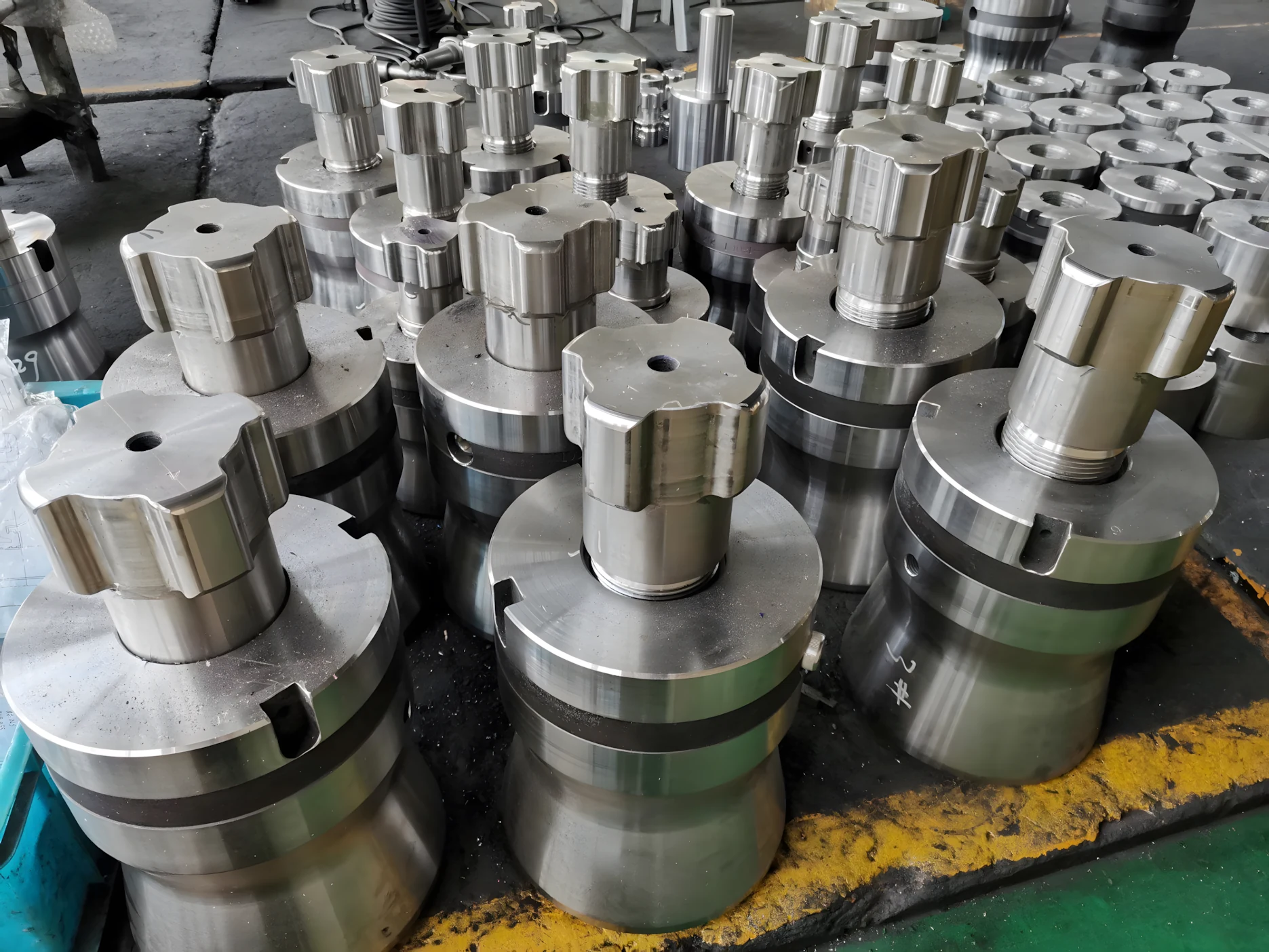

Dummy Head (All Sizes)

Precision dummy heads and bottom blocks, available in all standard sizes, used on the casting bench to start and support the ingot or billet strand for a clean starting profile.

Sizes All standard diameters
Use Casting bench start-up
Fit Custom sizes on request

VIEW DETAILS →

Sourcing flux, filtration or refractory consumables for your melting shop?

TALK TO OUR TEAM →

Can't Find a Grade or Size You Need?
We Custom-Manufacture Too.

Tell us your press tonnage, furnace capacity and temperature zone — we'll recommend the right product and specification.
